Hematology Analyzer
ABX Micros ES 60

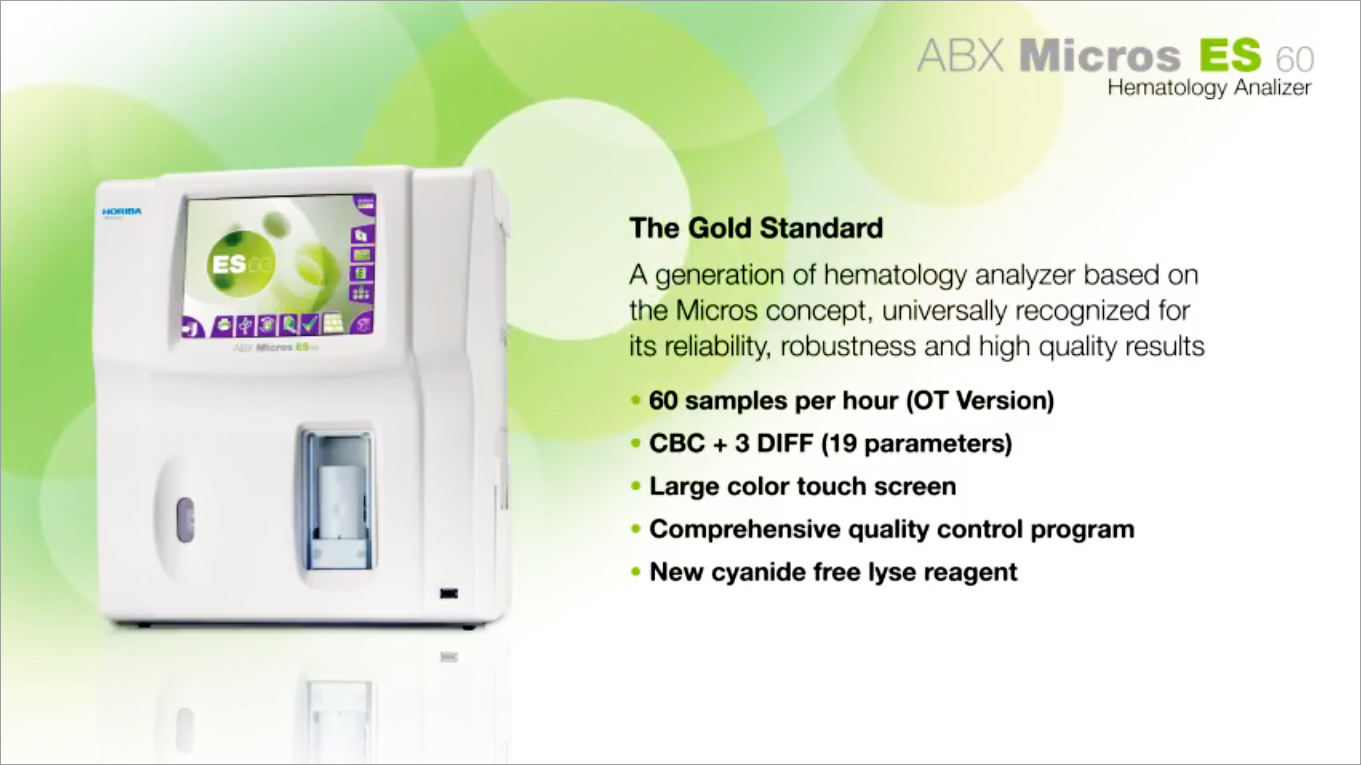

Hematology Analyzer ABX Micros ES 60

The Gold Standard : Perfect combination of intuitive use and innovative technologies

Highly compact and lightweight
Micro-sampling on whole blood: 10μL
Precise cellular identification through electronic impedance variation method
Haemoglobin measurement with photometry
Segment: Medical
Division: Hematology
Manufacturing Company: HORIBA ABX SAS
Base Product: Micros Range

For more information
Get in Touch

Key Features



Integrated barcode reader (samples, QC and reagents) and thermal printer (full data printout and graphs)
User-friendly interface (color touch screen, virtual keyboard)
Complete Quality Control Program (3 QC levels import in one time, Levey-Jennings, XB, overlapping)
Embedded Data Management: Data transfer with USB key to archive or download data, high results capacity, customized reports.
Compatible with innovative reagent pack or bottle systems


Technical

Weight: (OT) 30.9 lbs / 16 k, (CT) 35.7 lbs / 17 kg
Power supply: 100 V to 240 V - 50 Hz to 60 Hz
Dimensions (HWD):

(in) 16.9 x 14.2 x 14.2 / (cm) 43 x 36 x 36
Printer: Built-in thermal printer


Throughput 50 tests/hour (CT) - 60 tests/hour (OT)
Data Management:





Complete QC menu, logs (reagents, calibration, maintenance, errors, blank cycle), easy data transfer (USB), Transmission of patient & QC results to LAN (local area network), Mono-directional connection, All-in-one QC import, overlapping


Memory: 1000 patients results with histograms
Screen: LCD colour touch screen (8.4\'\')

Samples

Parameters (19) WBC, RBC, RDW CV, HGB,  MPV, HCT, MCV, PLT, MCH, MCHC, LYM# & LYM%, MON# & MON%, GRA# & GRA%, PDW*, PCT*, RDW SD*.
Graphics: PLT, RBC, WBC curves

Blood volume:

CBC + 3DIFF mode: 10 μL
Stability: 48 hours post-draw stability(at refrigerated temperature)
Operating sample mode:

Open tube or Closed Tube
Identification: Alphanumeric, Integrated barcode reader

* RUO (Research Use Only)

Results

Parameters Presicion (cv %) Linearity
WBC < 2.5 (at 4 - 10.0 x 103/μL) 0 - 100 x 10³/µL
RBC < 2.0 (at 4-7 x 106/μL) 0 -8 x 106/µL
HGB < 1.5 (at 12-18 g/dL) 0 - 26 x g/dL
HCT < 2.0 (at 36-54 %) 0 - 80%
PLT (whole blood) < 5.0 (at 200-500 x103/μL)

0 - 2200 x 10³/µL (whole blood)

0 - 4000 x 10³/µL (PLT concentrate)

Blood Controls & Calibrators

Blood Controls

Reference

Description



2042208

ABX Minotrol 16 - 2L

2 x 2.5 mL vial

2042202

ABX Minotrol 16 - 2N

2 x 2.5 mL vial

2042209

ABX Minotrol 16 - 2H

2 x 2.5 mL vial

Calibrators

Reference

Description



2032002

ABX Minocal

2 mL vial

N: normal level, H: high level, L: low level
* Recommended by HORIBA Medical
